ROUND
KNOBS |
|
Ø
INTERNAL
|
LENGTH
|
Ø
EXTERNAL
|
|
mm
|
mm
|
mm
|
|
8
|
37
|
20
|
|
8
|
56
|
24
|
|
8
|
68
|
28
|
|
10
|
56
|
24
|
|
10
|
68
|
28
|
|
12
|
56
|
24
|
|
12
|
68
|
28
|
|
14
|
68
|
28
|
|
16
|
68
|
28
|
|
|
 |
| ROUND
KNOBS LENGHT 83 |
|
Ø
INTERNAL
|
LENGTH
|
Ø
EXTERNAL
|
|
mm
|
mm
|
mm
|
|
14
|
83
|
24
|
|
16
|
83
|
24
|
|
18
|
83
|
24
|
|
20
|
83
|
24
|
|
|
 |
|

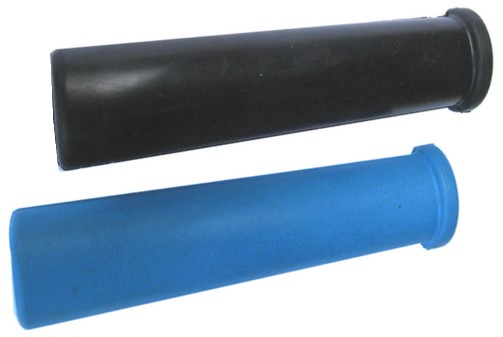

ROUND
HANDLES |
| Ø
INTERNAL |
LENGTH |
Ø
EXTERNAL |
| mm |
mm |
mm |
|
14
|
116
|
27
|
|
16
|
116
|
27
|
|
18 |
116
|
27 |
|
20
|
116
|
27
|
|
21
|
116
|
27
|
|
22
|
116
|
27
|
|
|
 |
|
ROUND
HANDLES |
| Ø
INTERNAL |
LENGTH |
Ø
EXTERNAL |
| mm |
mm |
mm |
|
22
|
125 |
30 |
|
24
|
125 |
30 |
|
25
|
125 |
30 |
| 27 |
123 |
33 |
| 28 |
123 |
33 |
| 30 |
125 |
38 |
| 33 |
127 |
40 |
|
|
 |
|
FLAT
HANDLES
LENGTH 70 |
| INTERNAL |
LENGTH |
EXTERNAL |
| mm |
mm |
mm |
|
15x5
|
70
|
29x14
|
|
15x8
|
70
|
29x14
|
|
15x10
|
70
|
29x14
|
|
20x5
|
70
|
29x14
|
|
20x8
|
70
|
29x14
|
|
20x10
|
70
|
29x14
|
|
|
 |
|
FLAT
HANDLES |
| INTERNAL |
LENGTH |
EXTERNAL |
| mm |
mm |
mm |
|
20x8
|
105
|
28x16
|
|
20x10
|
105
|
28x16
|
|
25x5
|
108
|
34x18
|
|
25x8
|
108
|
34x18
|
|
25x10
|
108
|
34x18
|
|
30x6
|
111
|
41x17
|
|
30x8
|
111
|
41x17
|
|
30x10
|
111
|
41x17
|
|
30x12
|
112
|
38x20
|
|
30x15
|
112
|
38x20
|
|
|
 |

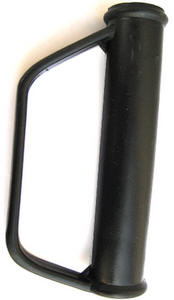

| SECURITY HANDLES |
| |
| Available for
Ø 22 and Ø 25 |
| We produce it
starting from 1500 pcs. |
| |
|
|
